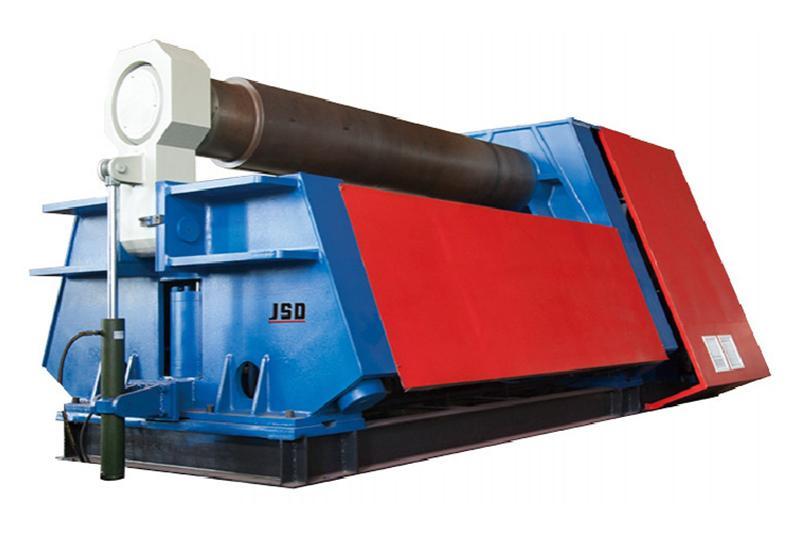

Description of the plate roll bending machine
The plate roll bending machine will adapt to bends in the metal plate material, and is suitable for the production of round, arc, and conical shaped products within certain ranges. This equipment features plate material end component pre-bending, and does so with a high work efficiency. It will also level metal plate material into a flat, smooth surface.
The plate roll bending machine is used in a number of industries, including chemicals, boilers, metal and machine manufacturing.
Parameters
The maximum thickness of the plate roll bending is 8mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-8 x 2000 |
8 |
2000 |
6.1 |
6 |
700 |
280 |
260 |
180 |
11 |
5300 x 1400 x 1760 |
| W12NC-8 x 2500 |
8 |
2500 |
6.1 |
6 |
750 |
300 |
280 |
230 |
15 |
6100 x 2000 x 2070 |
The maximum thickness of the plate roll bending is 12mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
|
W12NC-12x2000
|
12 |
2000 |
5.45 |
10 |
700 |
300 |
280 |
230 |
15 |
5600 x 2000 x 2070 |
| W12NC-12x2500 |
12 |
2500 |
5.5 |
10 |
750 |
340 |
300 |
260 |
22 |
6300 x 2000 x 1200 |
| W12NC-12 x 4000 |
12 |
4000 |
4 |
10 |
850 |
380 |
340 |
280 |
30 |
7600 x 2000 x 1800 |
The maximum thickness of the plate roll bending is 16mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-16x2000 |
16 |
2000 |
5.5 |
12 |
750 |
340 |
300 |
260 |
22 |
5800 x 2000 x 1800 |
| W12NC-16x2500 |
16 |
2500 |
6.5 |
12 |
850 |
350 |
320 |
280 |
30 |
6810 x 2000 x 1870 |
The maximum thickness of the plate roll bending is 20mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-20x2000 |
20 |
2000 |
6.5 |
16 |
850 |
350 |
320 |
280 |
30 |
6000 x 2000 x 1850 |
| W12NC-20x2500 |
20 |
2500 |
6.5 |
16 |
1000 |
400 |
380 |
320 |
37 |
6850 x 2000 x 2070 |
| W12NC-20x3000 |
20 |
3000 |
4.5 |
16 |
1100 |
450 |
420 |
350 |
45 |
7310 x 2100 x 2200 |
The maximum thickness of the plate roll bending is 25mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-25x2000 |
25 |
2000 |
6.5 |
22 |
1000 |
400 |
380 |
320 |
37 |
6300 x 2300 x 2070 |
| W12NC-25x2500 |
25 |
2500 |
5 |
22 |
1100 |
450 |
420 |
350 |
45 |
8000 x 2600 x 2100 |
| W12NC-25x3000 |
25 |
3000 |
5 |
22 |
1150 |
540 |
460 |
380 |
55 |
9000 x 3200 x 2070 |
| W12NC-25x4000 |
25 |
4000 |
4 |
22 |
1200 |
540 |
500 |
450 |
63 |
10100 x 3500 x 2900 |
The maximum thickness of the plate roll bending is 30mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-30x2000 |
30 |
2000 |
5 |
25 |
1100 |
450 |
420 |
350 |
45 |
7500 x 2600 x 2500 |
| W12NC-30x2500 |
30 |
2500 |
4.5 |
25 |
1150 |
480 |
460 |
380 |
55 |
8400 x 2590 x 2600 |
| W12NC-30x3000 |
30 |
3000 |
4 |
25 |
1300 |
560 |
520 |
420 |
60 |
9200 x 3500 x 2900 |
| W12NC-30x4000 |
30 |
4000 |
4 |
25 |
1500 |
650 |
600 |
480 |
60 |
10200 x 3500 x 2900 |
The maximum thickness of the plate roll bending is 40mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-40x2000 |
40 |
2000 |
4.5 |
36 |
1200 |
520 |
500 |
400 |
45 |
8200 x 3000 x 2900 |
| W12NC-40x2500 |
40 |
2500 |
4 |
36 |
1300 |
560 |
520 |
420 |
60 |
8700 x 3500 x 2900 |
| W12NC-40x3000 |
40 |
3000 |
4 |
36 |
1500 |
650 |
580 |
480 |
75 |
9200 x 3600 x 3000 |
| W12NC-40x4000 |
40 |
4000 |
3.5 |
36 |
1800 |
710 |
650 |
500 |
86 |
12500 x 4000 x 3500 |
The maximum thickness of the plate roll bending is 50mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-50x2000 |
50 |
2000 |
4 |
45 |
1500 |
650 |
580 |
480 |
60 |
8500 x 3500 x 3000 |
| W12NC-50x2500 |
50 |
2500 |
4.5 |
45 |
1550 |
680 |
620 |
500 |
75 |
9000 x 4000 x 3300 |
| W12NC-50x3000 |
50 |
3000 |
4 |
45 |
1800 |
720 |
650 |
520 |
90 |
9800 x 4300 x 3500 |
The maximum thickness of the plate roll bending is 60mm
| Specification |
MAX.thickness(mm) |
MAX.width(mm) |
Coiling speed(m/min) |
Prebending max.thickness(mm) |
Min.dia.of full loading(mm) |
Dia.of lower roller(mm) |
Dia.of lower roller(mm) |
Side-low axle diameter(mm) |
Motor power(Kw) |
Dimension L*W*H (mm) |
| W12NC-60x2500 |
60 |
2500 |
4 |
50 |
1800 |
700 |
650 |
500 |
90 |
9500 x 4500 x 3700 |
| W12NC-60x3000 |
60 |
3000 |
4.5 |
50 |
1800 |
750 |
710 |
560 |
121 |
10000 x 4500 x 3800 |
Jiashida is a sheet metal fabrication equipment manufacturer and supplier, offering all kinds of sheet metal metalwork machinery like hydraulic shear, press brake, punch press, plate roll bender and sheet metal shears, metal benders. We have well trained and experienced team and fully equipped machining equipment to guarantee that we offer good quality metalworking machines.
