Application

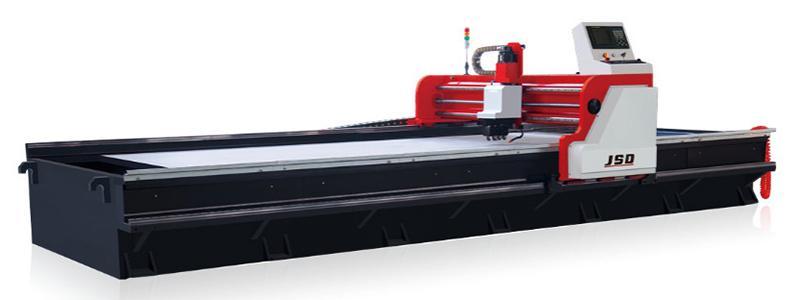

The V-cut scoring machine planed V-groove sheet metal machine is used specifically for middle and high class metal material decoration, due to the specialized requirements of that industry.
The V-cut scoring machine planed V-groove sheet metal machine is used to cut V shaped grooves in stainless steel sheets, aluminum plates, composite aluminum plates, copper plates, and other metal materials, as well as ensuring the product's arris arc semi-diameter is very small. This equipment is designed to meet the specific requirements for middle and high-end metal decorative products which will then be used in hotels, restaurants, commercial buildings, banks, airports and other locations.

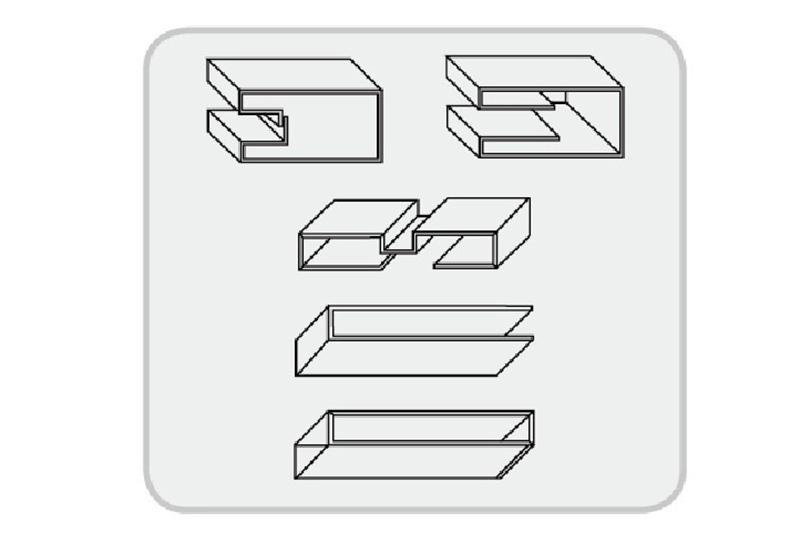

SamplesMaximum width of sheet metal | 1220mm |
Maximum length of sheet metal | 4000mm-6000mm |
Maximum thickness of sheet metal (stainless steel) | 3mm |
Minimum thickness of sheet metal | 0.65mm |
Maximum distance (beam moving forward and backward) | 1200mm |
Minimum displacement resolution (beam moving forward and backward) | 0.01mm |
Maximum distance (cutter rest moving up and down) | 100mm |
Minimum displacement resolution (cutter rest moving up and down) | 0.01mm |
Maximum distance (cutter rest moving left and right) | 4200mm |
Motor power during beam moving forward and backward | 1.1Kw |
Motor power during cutter rest moving left and right | 1.5Kw |
Features
1. Using the V-cut scoring machine planed V-groove sheet metal machine to cut V grooves in metal materials reduces the bending force, and is especially suitable for bending long sheet metal pieces in a bending machine with a small tonnage.
2. Using the machine, users can etch designs into the metal material, as well as perfectly place the material before bending. This ensures the accuracy of the bent side's length.
3. The V-cut scoring machine planed V groove sheet metal machine controls the depth of the sheet metal grooving, thus ensuring special bending material can be processed in traditional bending machines.
