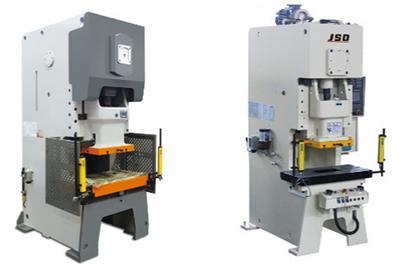

Pneumatic Punch Press（From 25 to 160 Ton）
Application of the pneumatic punch press
The pneumatic punch press is used in the piercing blanking of metal sheet materials and non-metal pipes. It is widely used for mechanical to the piercing blanking of the metal sheet material and non-metal pipe. The machine can be widely used in the production of mechanical products, household goods, road signs and office supplies.
| Type | ||||||
| Slider nominal pressure KN | 250 | 450 | 600 | 800 | 1600 | |
| Nominal force stroke mm | 3 | 4 | 4 | 5 | 6 | |
| Slider stroke mm | 80 | 100 | 120 | 140 | 160 | |
| Cushion KN (Optional) | Pressure | 45 | 60 | 80 | 145 | |
| Stroke | 50 | 50 | 65 | 80 | ||
| SPM | Fixed | 100 | 85 | 70 | 60 | 50 |
| Variable | 70-110 | 50-95 | 45-80 | 40-70 | 30-60 | |
| Maximum mold height mm | 250 | 270 | 300 | 330 | 400 | |
| Mold height adjustment mm | 50 | 60 | 70 | 80 | 110 | |
| Processing product length mm | 210 | 225 | 260 | 310 | 380 | |
| Workbench size mm | 400*700 | 440*810 | 500*850 | 600*1000 | 740*1300 | |
| Slider underside size mm | 250*360 | 340*410 | 400*480 | 420*580 | 580*800 | |
| Punch shank size mm | φ40*50 | φ40*65 | φ50*65 | φ50*80 | φ65*90 | |
| Distance between column mm | 450 | 530 | 580 | 600 | 780 | |
| Pneumatic pressure Mpa | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | |
| Workbench thickness mm | 80 | 110 | 130 | 140 | 165 | |
| Main motor KW | 3 | 4 | 5.5 | 7.5 | 15 | |
| Stroke adjustment motor KW | 0.5 | 0.75 | ||||
| Dimension mm | 136*857*2180 | 1410*990*2320 | 1580*1080*2555 | 1774*1186*3085 | 2120*1510*3300 | |
| Total weight Kg | 2800 | 4200 | 5700 | 7100 | 13500 | |
| Profile | Round Bar | Square | Equal Angle | T-Bar | Joistq | Channel | ||
| 90°Shearing | 45°Shearing | 90°Shearing | 45°Shearing | |||||
| Section |  |  |  |  |  |  |  |  |
| Q35Y-16 | 45mm | 40*40mm | 125*125*12mm | 50*50*5mm | 120*120*12mm | 60*60*8mm | 126*74*5mm | 126*53*5.5mm |
| Q35Y-20 | 50mm | 50*50mm | 140*140*12mm | 50*50*5mm | 140*140*12mm | 70*70*10mm | 160*86*8mm | 160*160*6.5mm |
| Q35Y-25 | 60mm | 50*50mm | 160*160*14mm | 50*50*5mm | 160*160*14mm | 80*80*10mm | 200*102*9mm | 210*75*9mm |
| Q35Y-30 | 65mm | 55*55mm | 180*180*16mm | 60*60*6mm | 180*180*16mm | 80*80*10mm | 280*124*12mm | 280*86*12mm |
Feature of the pneumatic punch press
1. The pneumatic punch press works quickly, and achieves complete coordination between the computer technology and production procedure. Machine operation is easy.
2. This equipment uses a foot switch to control the magnetic valve, and features a simple construction, low failure rate and high security.
3. Operation is easy, clean and sanitary.
