  4. QC11 Series Sheet Metal Hydraulic Guillotine Beam Shear

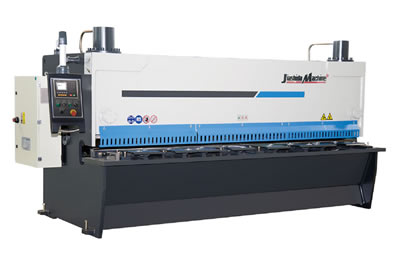

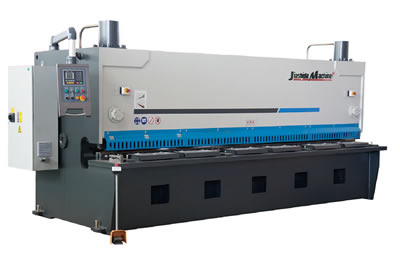

QC11 Series Sheet Metal Hydraulic Guillotine Beam Shear

SHEARING FROM 4 TO 30 MM THICKNESS

- Estun CNC control system
- Ball screws & polished rod with 0.05mm
- France Schneider Electrics
- Germany Bosch-Rexroth hydraulic valve
- Germany EMB tubing connector
- Germany Siemens main motor
- Hydraulic &electrical overload protection
-Light aligning
- Specialized rectangular blade for cutting stainless steel, four cutting edges can be used, long service life.

Type 4x2500 4x3200 4x4000 4x6000
Max Thickness (mm) < 450N/mm2 4 4 4 4
< 700N/mm2 2.5 2.5 2.5 2.5
Cutting length(mm) 2500 3200 4000 6000
Throat Depth(mm) 100 100 100 100
Shearing Angle(°) l°30' l°30' l°30' l°30'
Blade length（mm） 2600 3300 4100 6100
Shearing speed （Cuts/min） 10~12 10~12 8~10 5~7
Back Gauge
Specification 		Travel (mm) 600 600 600 600
Speed (mm/sec) 180 180 180 180
Front Holder
Quantity 		Number (PCS) 3 3 4 6
Length (mm) 800 800 800 800
Motor
Power
(kw) 		5.5 5.5 5.5 11
Oil Tank Capacity（L） 220 290 290 380
Weight
（kg） 		3800 5000 6500 11000
L*W*H（mm） 3040*1610*1620 3840*1610*1620 4600*1700*1700 6460*2100*3200
Type 6x2500 6x3200 6x4000 6x5000 6x6000
Max Thickness (mm) < 450N/mm2 6 6 6 6 6
< 700N/mm2 4 4 4 4 4
Throat Depth(mm) 145 145 145 145 145
Shearing Angle(°) l°30' l°30' l°30' l°30' l°30'
Blade length（mm） 2600 3300 4100 5100 6100
Shearing speed （Cuts/min） 10~12 9~11 8~10 6~8 5~7
Back Gauge
Specification 		Travel (mm) 600 600 600 600 600
Speed (mm/sec) 180 180 180 180 180
Front Holder
Quantity 		Number (PCS) 3 3 4 5 6
Length (mm) 800 300 800 300 800
Motor
Power
(kw) 		7.5 7.5 7.5 7.5 11
Oil Tank Capacity（L） 220 290 290 380 380
Weight
（kg） 		5000 6000 8000 10500 16500
L*W*H（mm） 3040*1610*1620 3840*1610*1620 4620*1750*1700 5400*1750*1700 6480*2100*2300
Type 8x2500 8x3200 8x4000 8x5000 8x6000
Max Thickness (mm) < 450N/mm2 8 8 8 8 8
< 700N/mm2 5 5 5 5 5
Cutting length(mm) 2500 3200 4000 5000 6000
Throat Depth(mm) 300 300 300 300 300
Shearing Angle(°) l°30' l°30' l°30' l°30' l°30'
Blade length（mm） 2600 3300 4100 5100 6100
Shearing speed （Cuts/min） 10~12 8~10 8~10 8~10 8~10
Back Gauge
Specification 		Travel (mm) 600 600 600 600 600
Speed (mm/sec) 180 180 180 180 180
Front Holder
Quantity 		Number (PCS) 3 3 4 5 6
Length (mm) 800 800 800 800 800
Motor
Power
(kw) 		7.5 7.5 7.5 7.5 7.5
Oil Tank Capacity（L） 220 290 290 380 380
Weight
（kg） 		600 7200 8800 11500 18000
L*W*H（mm） 3040*1700*1700 3860*1700*1700 4640*1700*1700 5400*2400*2000 6480*2100*2350
Type 10x2500 10x3200 10x4000 10x6000
Max Thickness (mm) < 450N/mm2 10 10 10 10
< 700N/mm2 6.5 6.5 6.5 6.5
Cutting length(mm) 2500 3200 4000 6000
Throat Depth(mm) 300 300 300 300
Shearing Angle(°) l°30' l°30' l°30' 2°
Blade length（mm） 2600 3300 4100 6100
Shearing speed （Cuts/min） 9~11 9~11 8~10 5~7
Back Gauge
Specification 		Travel (mm) 600 600 600 600
Speed (mm/sec) 180 180 180 180
Front Holder
Quantity 		Number (PCS) 3 3 4 6
Length (mm) 800 800 800 800
Motor
Power
(kw) 		11 11 11 15
Oil Tank Capacity（L） 320 420 420 520
Weight
（kg） 		7300 3000 12000 24000
L*W*H（mm） 3040*1700*1700 3860*1700*1700 4650*2100*2000 6500*2100*2300
Type 12x2500 12x3200 12x4000 12x5000 12x6000 12x3000
Max Thickness (mm) < 450N/mm2 12 12 12 12 12 12
< 700N/mm2 8 8 8 8 8 8
Cutting length(mm) 2500 3200 4000 5000 6000 8000
Throat Depth(mm) 300 300 300 300 300 300
Shearing Angle(°) 2° 2° 2° 2° 2° 2°
Blade length（mm） 2600 3300 4100 5100 6100 8100
Shearing speed （Cuts/min） 9~11 9~11 8~10 6~8 5~7 5~7
Back Gauge
Specification 		Travel (mm) 600 600 600 600 600 600
Speed (mm/sec) 180 180 180 180 180 180
Front Holder
Quantity 		Number (PCS) 3 3 4 5 6 8
Length (mm) 800 300 800 300 800 300
Motor
Power
(kw) 		18.5 18.5 18.5 18.5 18.5 18.5
Oil Tank Capacity（L） 360 500 500 520 600 620
Weight
（kg） 		9000 10300 13000 16000 29000 46500
L*W*H（mm） 3140*2150*2000 3880*2150*2000 4680*2150*2000 5900*2150*2000 6900*2600*2700 9000*3500*3500
Type 16x2500 16x3200 16x4000 16x5000 16x6000
Max Thickness (mm) < 450N/mm2 16 16 16 16 16
< 700N/mm2 10.5 10.5 10.5 10.5 10.5
Cutting length(mm) 2500 3200 4000 5000 6000
Throat Depth(mm) 320 320 320 320 320
Shearing Angle(°) 2°30' 2°30' 2°30' 2°30' 2°30'
Blade length（mm） 2600 3300 4100 5100 6100
Shearing speed （Cuts/min） 9~11 8~10 8~10 6~8 5~7
Back Gauge
Specification 		Travel (mm) 600 600 600 300 800
Speed (mm/sec) 180 180 180 180 180
Front Holder
Quantity 		Number (PCS) 3 3 4 5 6
Length (mm) 800 800 800 800 800
Motor
Power
(kw) 		18.5 18.5 18.5 18.5 22
Oil Tank Capacity（L） 360 500 500 520 550
Weight
（kg） 		11000 13000 16300 20000 36000
L*W*H（mm） 3140*2150*2000 3880*2150*2000 4650*2150*2200 5900*2600*2700 6900*2700*2700
Type 20x2500 20x3200 20x4000
Max Thickness (mm) < 450N/mm2 20 20 20
< 700N/mm2 13 13 13
Cutting length(mm) 2500 3200 4000
Throat Depth(mm) 320 320 320
Shearing Angle(°) 3° 3° 3°
Blade length（mm） 2600 3300 4100
Shearing speed （Cuts/min） 8~10 8~10 5~7
Back Gauge
Specification 		Travel (mm) 300 800 1000
Speed (mm/sec) 180 130 180
Front Holder
Quantity 		Number (PCS) 3 3 4
Length (mm) 800 800 300
Motor
Power
(kw) 		22 22 22
Oil Tank Capacity（L） 540 800 300
Weight
（kg） 		15500 18000 21000
L*W*H（mm） 3440*2300*2500 4150*2350*2700 4850*2350*2700
Type 25x2500 25x3200 25x4000 30x2500 30x3200
Max Thickness (mm) < 450N/mm2 25 25 25 30 30
< 700N/mm2 16.5 16.5 16.5 20 20
Cutting length(mm) 2500 3200 4000 2500 3200
Throat Depth(mm) 320 320 320 320 320
Shearing Angle(°) 3° 3° 3° 3° 3°
Blade length（mm） 2600 3300 4100 2600 3300
Shearing speed （Cuts/min） 8~10 5~7 5~7 5~7 5~7
Back Gauge
Specification 		Travel (mm) 1000 1000 1000 1000 1000
Speed (mm/sec) 180 180 180 180 180
Front Holder
Quantity 		Number (PCS) 3 3 4 3 3
Length (mm) 800 800 800 300 800
Motor
Power
(kw) 		37 37 37 37 37
Oil Tank Capacity（L） 800 300 800 300 800
Weight
（kg） 		19000 23000 27000 23500 27500
L*W*H（mm） 3200*2700*2900 4200*2700*2900 3350*2700*2900 3300*2900*2900 4200*2900*2900

QC11 Series with Different Controllers

Estun E21S CNC Control System:
-The QC11Y sheet metal guillotine shearing machine with E21S controller features a high definition liquid crystal display screen and programs quickly and conveniently;
-The intelligent location of the back gauge to eliminate the mechanical hand location;
-The QC11Y sheet metal guillotine shearing machine with E21S controller installs the timer relay inside, for easy, low cost operation.
-The machine has the function of shearing angle adjustment inside, does not need the indicator light and button;
-The encoder of the QC11Y sheet metal guillotine shearing machine with E21S controller has feedback on the blade edge gap and real time displays the blade edge gap size;
-The machine has the function of one key backup and recovery;
-To the encoder of the QC11Y sheet metal guillotine shearing machine with E21S controller, all the buttons are micro switches. And the machine has the tests of EMC, high and low temperature and vibration to ensure the stability and use age of the product.

Estun E200PS CNC system
- Programing quickly and conveniently;
- The QC11K sheet metal hydraulic guillotine shear with E200PS controller adopts CAN bus technology, the control accuracy is high and the resolution can reach about 0.001;
- The machine has the function of self-diagnosis and real time alarm, thus making the machine securely;
- The QC11K sheet metal hydraulic guillotine shear with E200PS controller has the function of one key backup and recovery。

From 2005,Jashida specialize in the production of sheet metal processing mechanical equipment used in a variety of fabrication applications. We hold a number of international certifications from governing bodies such as CE, SGS, and TUV.
