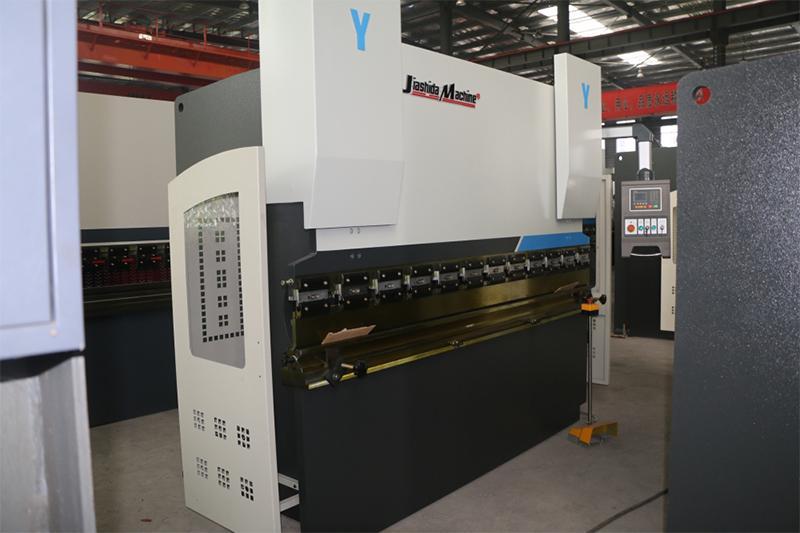

The E22 cnc press brake is primarily used for the bending and processing of stainless steel, iron, copper and aluminum, and features a high production efficiency and bending accuracy. The E22 cnc press brake uses upper and lower molds in different shapes, so that metal can be bent into various shapes. Through the use of a single sliding stroke, the material is quickly bent into shape, and the workpieces with complicated shapes can be made by multiple bending. The E22 cnc press brake can be widely used in the aviation industry, light industry, metallurgical industry, chemical industry, architecture industry, shipbuilding industry, auto industry, power industry, electric appliance industry and decoration industry.
|Model||Bending Pressure (Kn)||Bending Length (mm)||Column Distance (mm)||Throat Depth (mm||Slider Stroke (mm)||Max. Opening Height (mm)||Yl,Y2-axis Down Speed (mm / sec)||Yl,Y2-axis Back Stroke Speed (mm / sec)||Y1,Y2- axis Precision (mm)||X-axis Max Distance (mm)||Workpiece Linear Degree (mm/m)||X&R Axes Accuracy (mm)||Sliding Front Supporting Stopper Arms (PCS)||Back Stopper (PCS)||Main Motor (Kw)||L*W*H(mm)||Weight (T)|
1. The left vertical plate, right vertical plate, workbench and material pressing board are welded into an integrated structure, and use a tempering process to eliminate internal stress after welding. This results in the integrated structure having a high hardness and stability.
2. The frame and slider of the servo drive CNC bending press brake use a finite element analysis software in order to ensure machine reliability.
3. Hydraulic transmission: stable and reliable
4. Germany Rexroth or America First hydraulic system: high synchronization accuracy
5. The distance of the back gauge and slider stroke are controlled using the CNC system.
6. The cylinder is produced through casting, grinding and hard chrome plating processes, and is equipped with a sealing ring to eliminate oil leakages.
7. The hydraulic system uses an oil circuit integrated hydraulic system, and decreases the need for pipe installation.
8. The servo drive CNC bending press brake uses three-phase system power (380V) to supply the power, the control-circuit voltage (220V) is supported by a control transformer and the direct current power (+24V) is needed by an execution circuit electromagnetic valve, which is supported by the transformer and silicon rectifier.

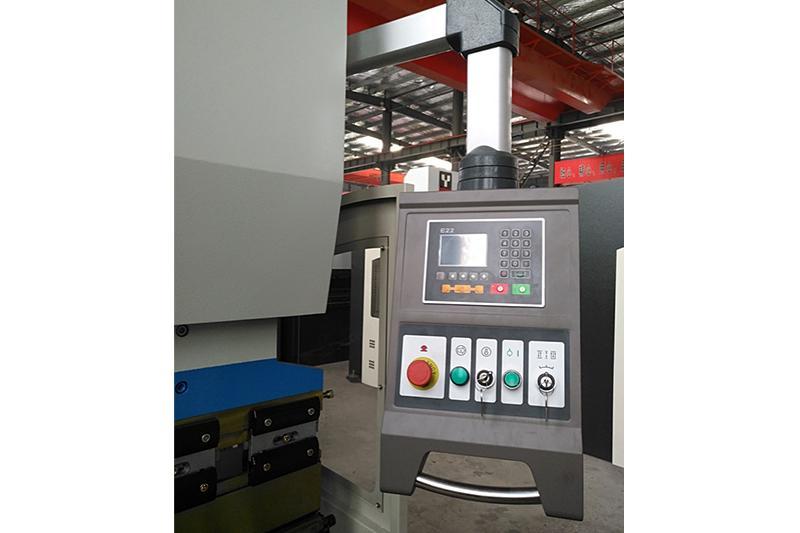

E22 CNC System
1. Automatic positioning control is applied to the backgauge and the cylinder block position.
2. The unilateral and bilateral positioning method can be set into the parameters, the unilateral positioning method can effectively eliminate the screw transmission gap.
3. The system has the flexible limit function.
4. Position memory function in case of power failure.
5. The display scale factor can be set according to the screw pitch and gear ratio, or this factor also can be automatically calculated by CNC system through the teaching operation function, the operation is very simple.
6. Single-step insertion mode, very practical and convenient.
7. Multi-step programming function, can realize multi-step self-operation.
8. Password protection function
When the user needs to perform location teaching or parameter modification, need to enter the correct password, otherwise can only view the parameters or modify the current position operation.

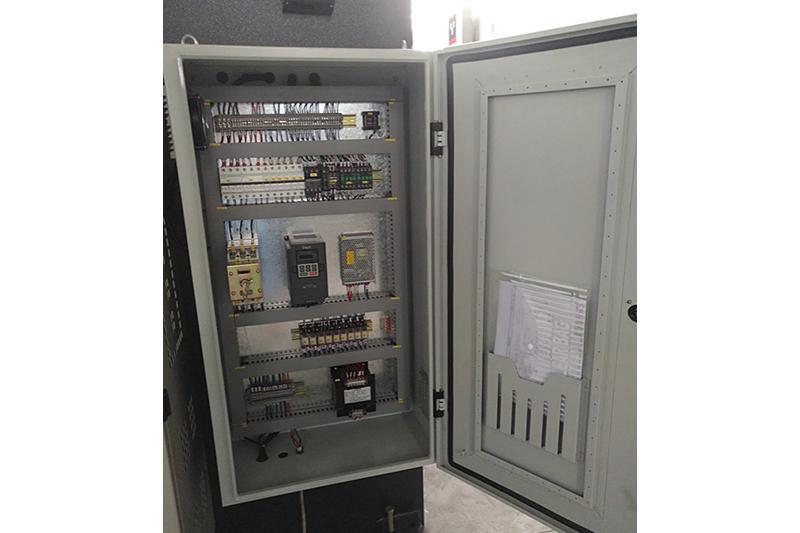

The electrical system uses primarily Schneider products, and is equipped with a high quality dust protection electrical cabinet, thus ensuring the quality of the electrical system

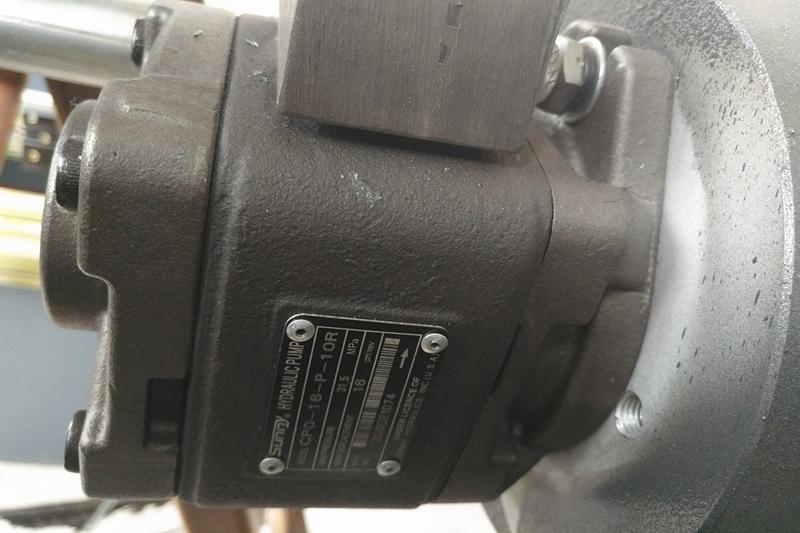

America SUNNY internal gear pump
Long service life, Reliable performance
Highly efficient capacity
Low noise; Low pressure variation
High oil absorption; Good viscosity
Compact structure; Maintenance is easy
Germany Rexroth or America First hydraulic system
Famous brand; High quality
Compact structure; Beautiful appearance
Maintaining easily and quickly;

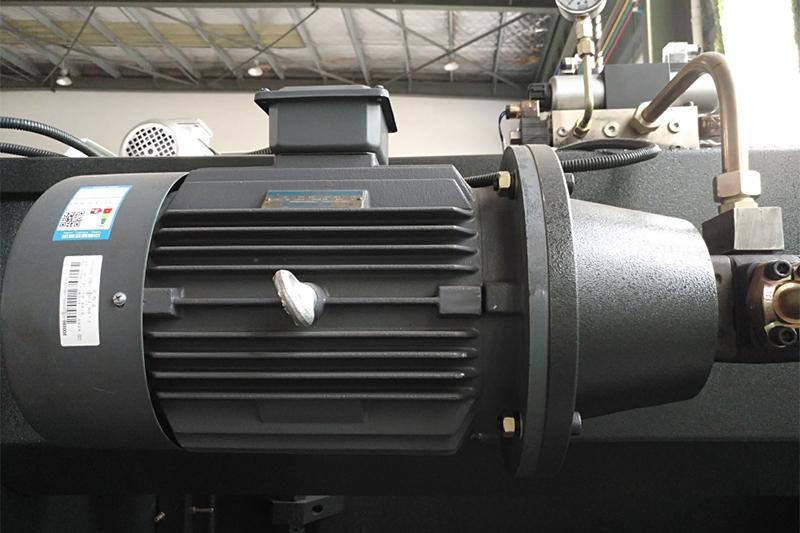

By using the Siemens electric machine, the service life of the electric bending press brake is increased, as well as decreases the noise levels of operation.

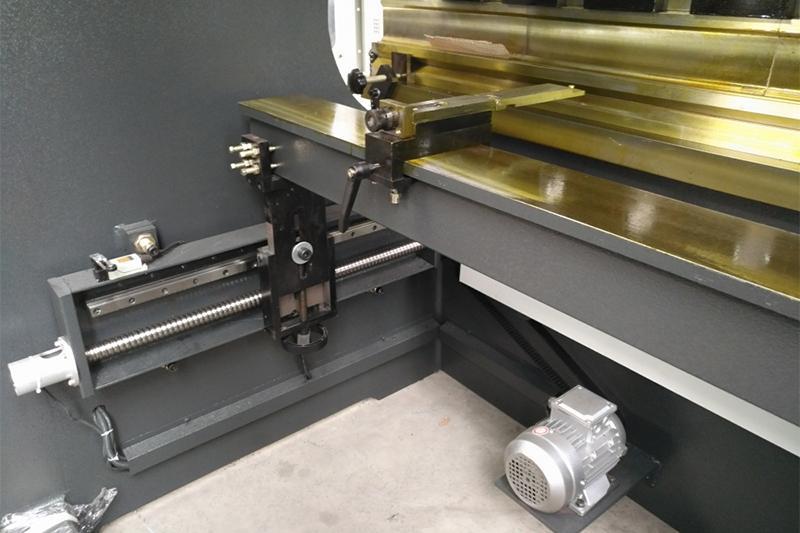

Back gauge (X)
Large lead ball screws transmission; High accuracy, fast speed and good stability

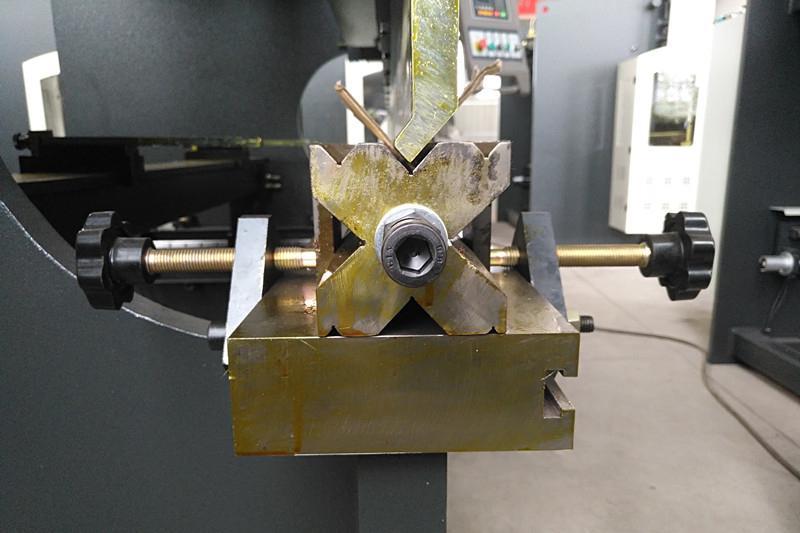

A set of standard molds makes mold change easy
Integrated quenching technique; High hardness and anti-grinding
The mold can be designed according to the clients' requirements

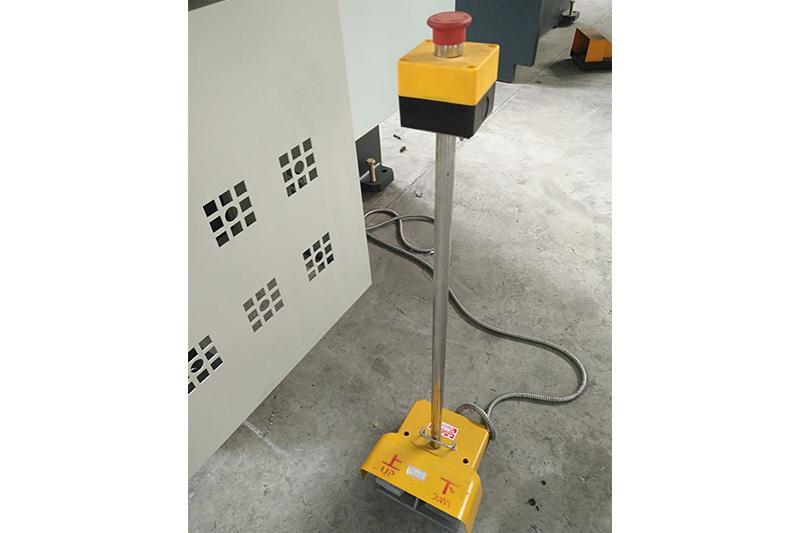

There is an emergency stop device on the foot switch to ensure the worker's safety.

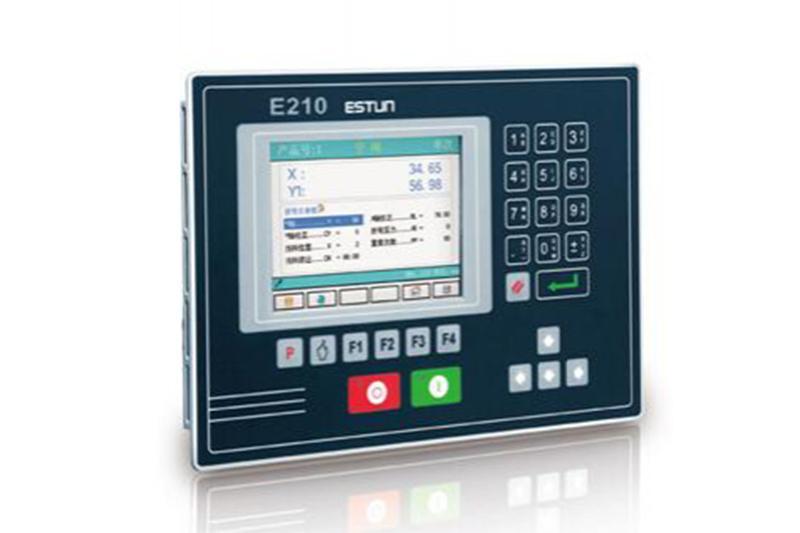

Optional CNC System E210
5.6 in TFT LCD screen
100 procedures; Each procedure has 25 processes
Molding database: upper mold is 15 and lower mold is 15
Angle program; Calculating the bending depth automatically
The device has one key backup and recovery functions
